DefectDojo Installation

DefectDojo is a Centralised Vulnerability Management

---

Important Notes

• Security Context Configration with Official DefectDojo Helm Chart is not applicatable
  • As DefectDojo Container Images are not yet implement run as non-root user and requires Run as Root/Run with Privilege Exceptions.

Prerequisites

Kubernetes Cluster

DefectDojo will be installed on 🟢 Management Kubernetes Cluster

• 📥Ingress Service provided as Kubernetes Ingress Class (IngressClass)
• 🛡️TLS Certificate for DefectDojo provided as Kubernetes Secret
  • DefectDojo will be exposed as HTTPS with Kubernetes Ingress.

Application Dependencies

DefectDojo depends on multiple dependencies to be up and running but only the following will be provisioned and/or managed by you.

• 📦PostgreSQL SQL Database ; Deploy external/dedicated instance of Database.
  • In case will be installed on Kubernetes Cluster.
    • Will require 💿Persistence Storage as Kubernetes Storage Class (StorageClass)

Provisioning Summary

Once finished everything, these are systems that up and running.

No.	Tool	Description	Kubernetes Namespace	Kubernetes Cluster
1.	PostgreSQL for DefectDojo	Database System for DefectDojo	devsecops-system	🟢 Management
2.	DefectDojo	Centralised Vulnerability Management	devsecops-system	🟢 Management

Complete Prerequisites

Kubernetes Cluster

Prepare Shell Variables

Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

1. Connect to 🟢 Management Kubernetes Cluster ; i.e w/ Kubeconfig File

   Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

   source $BASE_WORKING_DIR/shell-values/kubernetes/management_cluster.vars.sh

2. Export Required Shell Variables

   Ensure DEFECTDOJO_DOMAIN, DEFECTDOJO_ADMIN_USERNAME, DEFECTDOJO_ADMIN_PASSWORD, and DEFECTDOJO_ADMIN_EMAIL are defined as per the Shell Variables guide.

   Ensure K8S_INTERNAL_DOMAIN, K8S_INGRESSCLASS_NAME, K8S_STORAGECLASS_NAME, K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME are defined as per the Shell Variables guide.

   Ensure KEYCLOAK_DOMAIN, KEYCLOAK_REALM are defined as per the Shell Variables guide.

3. Create Kubernetes Secret for 🛡️ TLS Certificate for DefectDojo in Namespace devsecops-system.

   Kubernetes Ingress for DefectDojo will associate TLS Certificate with Kubernetes Secret named $K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME.

   Create one using from .crt and .key file.

   kubectl create secret tls $K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME \
     --cert=/path/to/cert/file --key=/path/to/key/file \
     --namespace devsecops-system

   💡 Should return secret/... created message.

Application Dependencies

PostgreSQL SQL Database

Note

Provided guide adheres to utilising CloudnativePG Operator to provide PostgreSQL instance.

1. Set PostgreSQL Information

   • Database Name: defectdojo (Defined in manifest)
   • Database User: defectdojo (Defined in manifest)
   • Database Password: ${DEFECTDOJO_POSTGRES_USER_PASSWORD} (Previously exported)
   • Postgres Superuser Password: ${DEFECTDOJO_POSTGRES_SUPERUSER_PASSWORD} (Previously exported)

   Note

   SEAWEEDFS_HA_S3_POSTGRES_BACKUP_PASSWORD and SEAWEEDFS_HA_API_INTERNAL_DOMAIN are assumed to be exported as defined in the SeaweedFS (HA) Installation guide. The Manifest below renders both into the S3 Backup Credential; if they are missing it still applies and the Cluster still reports Ready, but Continuous Archiving fails.

2. Provision PostgreSQL for DefectDojo

   The following manifest defines the entire PostgreSQL system, including credentials and the CNPG cluster.

   cat <<EOF > $BASE_WORKING_DIR/kubernetes-manifests/defectdojo-postgres.yaml
   ---
   # DefectDojo Postgres Superuser Credentials
   apiVersion: v1
   kind: Secret
   type: kubernetes.io/basic-auth
   metadata:
     name: defectdojo-postgres-superuser
     namespace: devsecops-system
   stringData:
     username: postgres
     password: "${DEFECTDOJO_POSTGRES_SUPERUSER_PASSWORD}"
   ---
   # DefectDojo Application User Credentials
   apiVersion: v1
   kind: Secret
   type: kubernetes.io/basic-auth
   metadata:
     name: defectdojo-postgres-user
     namespace: devsecops-system
   stringData:
     username: defectdojo
     password: "${DEFECTDOJO_POSTGRES_USER_PASSWORD}"
   ---
   # S3 Credentials for Postgres Backups (to SeaweedFS HA)
   apiVersion: v1
   kind: Secret
   type: Opaque
   metadata:
     name: defectdojo-postgres-s3-secret
     namespace: devsecops-system
   stringData:
     S3_ACCESS_KEY: "postgres-backup"
     S3_SECRET_KEY: "${SEAWEEDFS_HA_S3_POSTGRES_BACKUP_PASSWORD}"
   ---
   apiVersion: barmancloud.cnpg.io/v1
   kind: ObjectStore
   metadata:
     name: defectdojo-postgres-backup
     namespace: devsecops-system
   spec:
     # This resource defines the backup destination for the Barman Cloud Plugin
     configuration:
       destinationPath: s3://postgres-backups/
       endpointURL: "http://${SEAWEEDFS_HA_API_INTERNAL_DOMAIN}"
       s3Credentials:
         accessKeyId:
           name: defectdojo-postgres-s3-secret
           key: S3_ACCESS_KEY
         secretAccessKey:
           name: defectdojo-postgres-s3-secret
           key: S3_SECRET_KEY
       wal:
         compression: gzip
       data:
         compression: gzip

     # Retention policy for backups and WALs handled by the plugin
     retentionPolicy: "30d"

   ---
   apiVersion: postgresql.cnpg.io/v1
   kind: Cluster
   metadata:
     name: defectdojo-postgres
     namespace: devsecops-system
     labels:
       app.kubernetes.io/name: defectdojo-postgres
       app.kubernetes.io/part-of: defectdojo
   spec:
     instances: 1

     # Image configuration (Postgres 15)
     imageName: ghcr.io/cloudnative-pg/postgresql:15

     # Enable the Barman Cloud Plugin for backups
     plugins:
       - name: barman-cloud.cloudnative-pg.io
         isWALArchiver: true
         parameters:
           serverName: "defectdojo-postgres"
           barmanObjectName: "defectdojo-postgres-backup"

     # Storage Configuration
     storage:
       size: 5Gi
       storageClass: "${K8S_STORAGECLASS_NAME}"

     walStorage:
       size: 2Gi
       storageClass: "${K8S_STORAGECLASS_NAME}"

     # Bootstrap Configuration
     bootstrap:
       initdb:
         database: defectdojo
         owner: defectdojo
         secret:
           name: defectdojo-postgres-user

     # Superuser credentials (root/postgres)
     superuserSecret:
       name: defectdojo-postgres-superuser

     # Backup Configuration (Barman Cloud Plugin will automatically detect matching ObjectStore)
     backup:
       {}

     # Resources
     resources:
       requests:
         memory: "256Mi"
         cpu: "200m"
       limits:
         memory: "1Gi"
         cpu: "1000m"

   EOF

   kubectl apply -f $BASE_WORKING_DIR/kubernetes-manifests/defectdojo-postgres.yaml

3. Check for PostgreSQL for DefectDojo Readiness - MUST be Ready and Running.

   Get Pod Status - PostgreSQL for DefectDojo

   kubectl get pods -n devsecops-system

   💡 PostgreSQL for DefectDojo Pods MUST be Running

   NAME                        READY   STATUS    RESTARTS   AGE
   ... (deducted)
   defectdojo-postgres-1       2/2     Running   0          XdXh

Pre-Installation

Prepare DefectDojo Configurations

1. DefectDojo Entrypoint Domain

   • Domain: ${DEFECTDOJO_DOMAIN} (Previously exported)

2. DefectDojo Initial Admin Account

   • Admin Username: ${DEFECTDOJO_ADMIN_USERNAME} (Previously exported)
   • Admin Password: ${DEFECTDOJO_ADMIN_PASSWORD} (Previously exported)
   • Admin Email: ${DEFECTDOJO_ADMIN_EMAIL} (Previously exported)

3. Configure OIDC with Keycloak

   Ensure you have followed the Procuring Keycloak Credentials guide to obtain the client-id, client-secret, and signing-public-key for DefectDojo.

   cat <<EOF > $BASE_WORKING_DIR/kubernetes-manifests/defectdojo-oidc.yaml
   apiVersion: v1
   kind: Secret
   type: Opaque
   metadata:
     name: defectdojo-oidc-configurations
   stringData:
     client-id: ${DEFECTDOJO_OIDC_CLIENT_ID}
     client-secret: ${DEFECTDOJO_OIDC_CLIENT_SECRET}
     authorization-endpoint: https://${KEYCLOAK_DOMAIN}/realms/${KEYCLOAK_REALM}/protocol/openid-connect/auth
     access-token-endpoint: https://${KEYCLOAK_DOMAIN}/realms/${KEYCLOAK_REALM}/protocol/openid-connect/token
     signing-public-key: ${KEYCLOAK_SIGNING_PUBKEY}

   EOF

   Apply the OIDC configuration:

   kubectl apply --namespace devsecops-system \
       -f $BASE_WORKING_DIR/kubernetes-manifests/defectdojo-oidc.yaml

4. Create Helm Values Configurations

   cat <<EOF > $BASE_WORKING_DIR/helm-values/defectdojo-full-values.yaml
   ---
   ## Application: Exposed Hostname (Ingress)
   host: "${DEFECTDOJO_DOMAIN}"
   site_url: "https://${DEFECTDOJO_DOMAIN}"

   ## Application: Configure RabbitMQ
   ## NOTE: Community Deprecate RabbitMQ on 2024-Q1 Updates, move to Redis; Retain for Older Helm Chart Version DefectDojo Deployment, Can be removed later
   ## See On: https://github.com/DefectDojo/django-DefectDojo/discussions/9690
   createRabbitMqSecret: true
   rabbitmq:
     ulimitNofiles: "" ## OPSTELLA_CUSTOMIZE: Eliminate ulimit Problem
     clusterDomain: "${K8S_INTERNAL_DOMAIN}"

   ## Application: Configure Redis
   createRedisSecret: true
   redis:
     image:
       repository: bitnamilegacy/redis
     clusterDomain: "${K8S_INTERNAL_DOMAIN}"
     master:
       persistence:
         storageClass: "${K8S_STORAGECLASS_NAME}"

   ## Kubernetes/Application: Authentication
   createSecret: true
   admin:
     user: admin
     password: "${DEFECTDOJO_ADMIN_PASSWORD}"
     mail: "${DEFECTDOJO_ADMIN_EMAIL}"
     firstName: Defectdojo
     lastName: Administrator

   ## Application: Application Initializer ; For first time ONLY
   initializer:
     ## should be false after initial installation was performed
     run: true

   securityContext:
     enabled: true
     djangoSecurityContext:
       # django dockerfile sets USER=1001
       runAsUser: 1001
       runAsNonRoot: true
       seccompProfile:
         type: RuntimeDefault
       privileged: false
       allowPrivilegeEscalation: false
       capabilities:
         drop: ["ALL"]
     nginxSecurityContext:
       # nginx dockerfile sets USER=1001
       runAsUser: 1001
       runAsNonRoot: true
       seccompProfile:
         type: RuntimeDefault
       privileged: false
       allowPrivilegeEscalation: false
       capabilities:
         drop: ["ALL"]

   django:
     ## Kubernetes: Expose through Kubernetes Ingress
     ingress:
       enabled: true
       ingressClassName: "${K8S_INGRESSCLASS_NAME}"
       annotations:
         nginx.ingress.kubernetes.io/proxy-body-size: "0"
         ingress.kubernetes.io/proxy-body-size: "0"
         ## OPSTELLA_CUSTOMIZE: Fix Heavy DefectDojo Finding Uploads Failed Due to Timeout
         nginx.ingress.kubernetes.io/proxy-read-timeout: "1800"
       activateTLS: true
       secretName: "${K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME}"

   ## Kubernetes/Application: Database Configuration
   database: postgresql
   createPostgresqlSecret: false
   postgresql:
     enabled: false
     postgresServer: defectdojo-postgres-rw.devsecops-system.svc
     auth:
       database: defectdojo
       username: defectdojo
       existingSecret: defectdojo-postgres-user
       secretKeys:
         adminPasswordKey: username
         userPasswordKey: password

   ## OPSTELLA_CUSTOMIZE/Application: Extra Configurations:
   ## - OIDC with Keycloak
   extraConfigs:
     DD_SECURE_SSL_REDIRECT: 'True'
     DD_SOCIAL_AUTH_KEYCLOAK_OAUTH2_ENABLED: 'True'
     DD_SOCIAL_AUTH_KEYCLOAK_LOGIN_BUTTON_TEXT: "Sign in with Opstella"

   ## OPSTELLA_CUSTOMIZE/Kubernetes/Application: Extra Environment Variables:
   ## - OIDC with Keycloak: Related Values for Setup
   extraEnv:
     - name: DD_SOCIAL_AUTH_KEYCLOAK_PUBLIC_KEY
       valueFrom:
         secretKeyRef:
           name: defectdojo-oidc-configurations
           key: signing-public-key
     - name: DD_SOCIAL_AUTH_KEYCLOAK_AUTHORIZATION_URL
       valueFrom:
         secretKeyRef:
           name: defectdojo-oidc-configurations
           key: authorization-endpoint
     - name: DD_SOCIAL_AUTH_KEYCLOAK_ACCESS_TOKEN_URL
       valueFrom:
         secretKeyRef:
           name: defectdojo-oidc-configurations
           key: access-token-endpoint
     - name: DD_SOCIAL_AUTH_KEYCLOAK_KEY
       valueFrom:
         secretKeyRef:
           name: defectdojo-oidc-configurations
           key: client-id
     - name: DD_SOCIAL_AUTH_KEYCLOAK_SECRET
       valueFrom:
         secretKeyRef:
           name: defectdojo-oidc-configurations
           key: client-secret
   EOF

Installation

1. Add DefectDojo Helm Repository

   helm repo add defectdojo https://raw.githubusercontent.com/DefectDojo/django-DefectDojo/helm-charts
   helm repo update

2. Install DefectDojo

   • Install a Helm Release with specific Helm Chart Version --version 1.6.179 (App Version: 2.44.3)

     helm upgrade --install defectdojo defectdojo/defectdojo --version 1.6.179 \
       --namespace devsecops-system \
       --set initializer.run=true \
       -f $BASE_WORKING_DIR/helm-values/defectdojo-full-values.yaml

Post-Installation

DefectDojo Testing

1. Get Pod Status - DefectDojo

   kubectl get pods -n devsecops-system

   DefectDojo Pods should be Running

   NAME                                  READY   STATUS    RESTARTS    AGE
   ... (deducted)
   defectdojo-celery-beat-XXXXX-YYYY     1/1     Running   0           XdXh
   defectdojo-celery-worker-XXXXX-YYYY   1/1     Running   0           XdXh
   defectdojo-django-XXXXX-YYYY          2/2     Running   0           XdXh
   defectdojo-redis-master-0             1/1     Running   0           XdXh

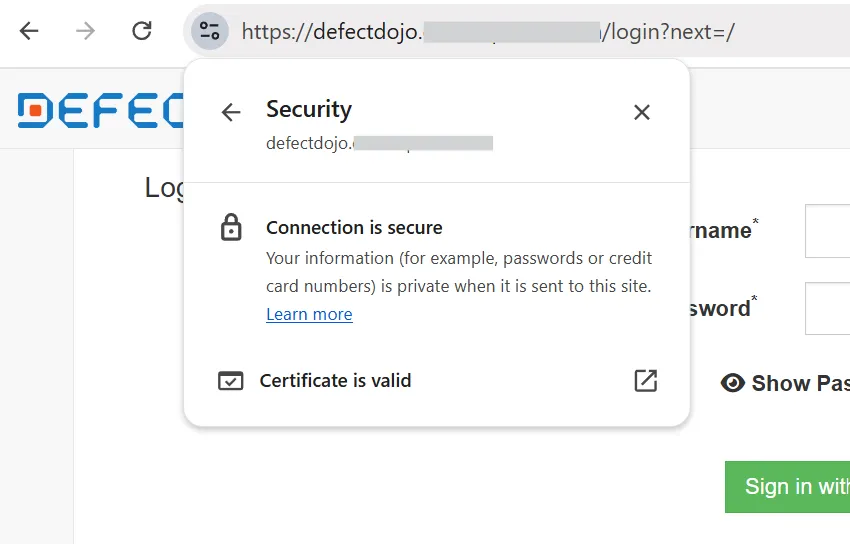

2. Visit https://${DEFECTDOJO_DOMAIN}

   • It should be accessible.
   • TLS Certificate should be valid and coresponding to your TLS Certificate Installed



3. Login with Users

   • Try to login with Initial Admin Account

     defectdojo,$DEFECTDOJO_ADMIN_PASSWORD, if success then it works.

   • You will be testing Single Sign-On Integration in End-to-End Testing/Single Sign-On for DefectDojo

Retrieve Access Token

Will be used for Integrating with Opstella

1. Login with Initial Admin Account

   • Username: defectdojo
   • Password: $DEFECTDOJO_ADMIN_PASSWORD

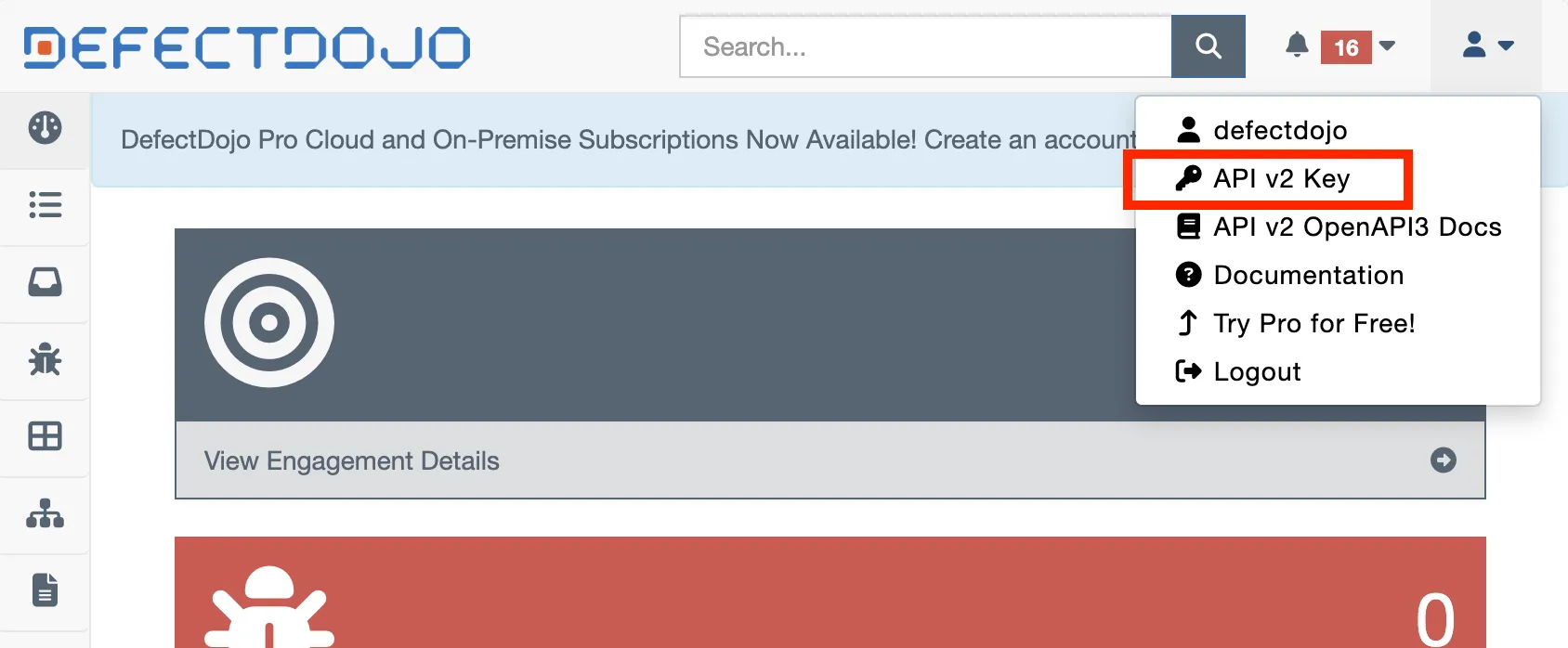

2. Go to Top Right User Menu > API v2 Key



3. Save the one starts with Token abc123...



4. Save to Shell variables for future use $BASE_WORKING_DIR/shell-values/tools/defectdojo.vars.sh with DEFECTDOJO_TOKEN variable name

Troubleshooting

defectdojo-celery-beat stuck in CrashLoopBackOff and never recovers

Symptom — defectdojo-celery-beat is 0/1 CrashLoopBackOff with a very high RESTARTS count, while every other DefectDojo Pod is Running. The Helm Release still reports deployed.

kubectl logs -n devsecops-system -l defectdojo.org/component=celery,defectdojo.org/subcomponent=beat

ERROR: Pidfile (/var/run/defectdojo/celery-beat.pid) already exists.
Seems we're already running? (pid: 1)

Cause — The Helm Chart mounts an emptyDir Volume at /run/defectdojo (/var/run is a symlink to /run), and Celery Beat writes its pidfile there. An emptyDir lives for the lifetime of the Pod, not the Container. If Celery Beat is ever killed uncleanly (OOM, Node pressure, SIGKILL, an API Server outage), the pidfile is left behind, and every Container restart inside the same Pod reads the stale pidfile, assumes another Beat is already running, and exits with code 73. The restart loop can never clear itself.

Fix — Delete the Pod, so its emptyDir is discarded with it. Restarting the Container, or kubectl rollout restart, is not enough.

kubectl delete pod -n devsecops-system -l defectdojo.org/component=celery,defectdojo.org/subcomponent=beat

💡 The new Pod should reach 1/1 Running, with beat: Starting... in its Logs.

Note

A deployed Helm Release says nothing about Pod health. When verifying, read the RESTARTS column too — not only STATUS.
