Headlamp Non-Production Environment Installation

Prerequisites

Kubernetes Cluster

Headlamp (Non-Production) will be installed on 🟦 Non-Production Workload Kubernetes Cluster

• 📥Ingress Service provided as Kubernetes Ingress Class (IngressClass)
• 🛡️TLS Certificate for Headlamp (Non-Production) provided as Kubernetes Secret
  • Headlamp (Non-Production) will be exposed as HTTPS with Kubernetes Ingress.

Complete Prerequisites

Kubernetes Cluster

Prepare Shell Variables

Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

1. Connect to 🟦 Non-Production Workload Kubernetes Cluster ; i.e w/ Kubeconfig File

   Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

   source $HOME/opstella-installation/shell-values/kubernetes/nonprod_cluster.vars.sh

   export KUBECONFIG="$HOME/opstella-installation/kubeconfigs/nonprod_cluster.yaml"

2. Create Kubernetes Secret for 🛡️ TLS Certificate for Headlamp (Non-Production) in Namespace devsecops-system.

   Create one using from .crt and .key file.

   kubectl create secret tls $K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME \
     --cert=/path/to/cert/file --key=/path/to/key/file \
     --namespace devsecops-system

   💡 Should return secret/wildcard-...-tls created message.

Pre-Installation

Prepare Headlamp (Non-Production) Configurations

1. Create Helm Values Configurations

   cat <<EOF > $HOME/opstella-installation/helm-values/headlamp-nonprod-full-values.yaml
   ingress:
     # -- Enable ingress controller resource
     enabled: true
     ingressClassName: ${K8S_INGRESSCLASS_NAME}
     # -- Hostname(s) for the Ingress resource
     hosts:
       - host: ${HEADLAMP_DOMAIN}
         paths:
           - path: /
             type: Prefix
     # -- Ingress TLS configuration
     tls:
       - secretName: ${K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME}
         hosts:
           - ${HEADLAMP_DOMAIN}

   # -- Headlamp containers Security Context
   securityContext:
     seccompProfile:
       type: RuntimeDefault
     capabilities:
       drop: ["ALL"]
     runAsNonRoot: true
     privileged: false
     allowPrivilegeEscalation: false
     runAsUser: 100
     runAsGroup: 101

   EOF

Installation

1. Add Headlamp Helm Repository

   # Add Helm Repository
   helm repo add headlamp https://kubernetes-sigs.github.io/headlamp/
   helm repo update

2. Install a Helm Release with specific Helm Chart Version --version 0.28.1 (App Version: 0.28.1)

   helm install headlamp headlamp/headlamp --version 0.28.1 \
       --namespace devsecops-system \
       -f $HOME/opstella-installation/helm-values/headlamp-nonprod-full-values.yaml

Post-Installation

Headlamp Testing

1. Get Pod Status - Headlamp

   kubectl get pods -n devsecops-system

   Headlamp should be Running

   NAME                      READY   STATUS    RESTARTS   AGE
   ... (deducted)
   headlamp-XXXXXXXX-YYYYY   1/1     Running   0          Xd

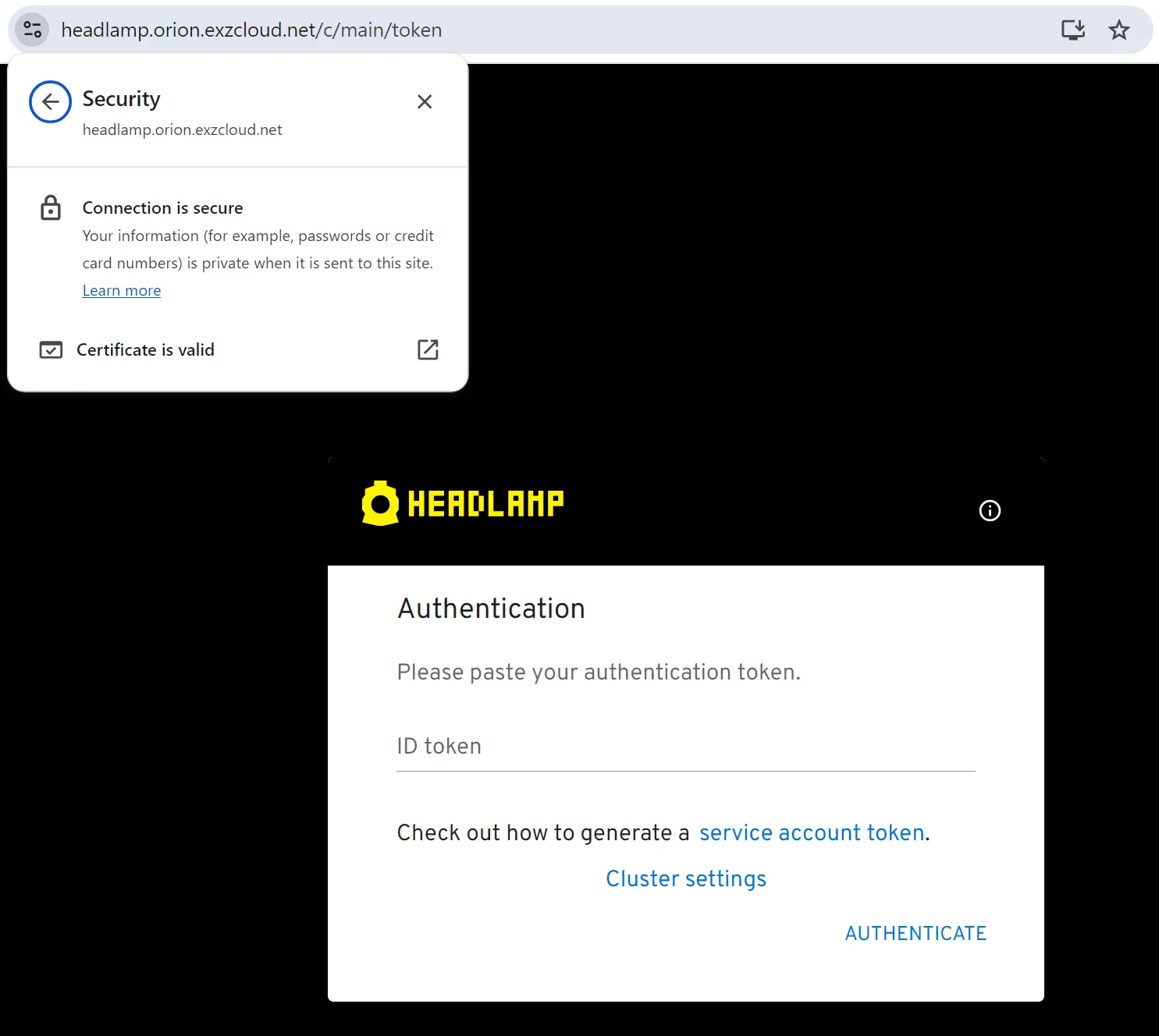

2. Visit https://${HEADLAMP_DOMAIN}

   • It should be accessible.
   • TLS Certificate should be valid and coresponding to your TLS Certificate Installed
