SonarQube Installation

SonarQube is a Static Application Security Testing (SAST)

Prerequisites

Kubernetes Cluster

SonarQube will be installed on 🟢 Management Kubernetes Cluster

📥Ingress Service provided as Kubernetes Ingress Class (IngressClass)
🛡️TLS Certificate for SonarQube provided as Kubernetes Secret
- SonarQube will be exposed as HTTPS with Kubernetes Ingress.

Application Dependencies

SonarQube depends on multiple dependencies to be up and running but only the following will be provisioned and/or managed by you.

📦PostgreSQL SQL Database ; Deploy external/dedicated instance of Database.
- Do you bring your own PostgreSQL SQL Database for SonarQube?
- In case will be installed on Kubernetes Cluster.
  - Will require 💿Persistence Storage as Kubernetes Storage Class (StorageClass)

Provisioning Summary

Once finished everything, these are systems that up and running.

No.	Tool	Description	Kubernetes Namespace	Kubernetes Cluster
1.	PostgreSQL for SonarQube	Database System for SonarQube	`devsecops-system`	`🟢 Management`
2.	SonarQube	Static Application Security Testing (SAST)	`devsecops-system`	`🟢 Management`

Complete Prerequisites

Kubernetes Cluster

Prepare Shell Variables

Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

Connect to 🟢 Management Kubernetes Cluster ; i.e w/ Kubeconfig File

Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

source $HOME/opstella-installation/shell-values/kubernetes/management_cluster.vars.sh
source $HOME/opstella-installation/shell-values/tools/sonarqube.vars.sh

export KUBECONFIG="$HOME/opstella-installation/kubeconfigs/management_cluster.yaml"

Export Required Shell Variables

Ensure SONARQUBE_DOMAIN and SONARQUBE_ADMIN_PASSWORD are defined as per the Shell Variables guide.

Ensure K8S_INTERNAL_DOMAIN, K8S_INGRESSCLASS_NAME, K8S_STORAGECLASS_NAME, K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME are defined as per the Shell Variables guide. Additionally, export the following variables:
Terminal window
```
# PostgreSQL Backend Passwords
export SONARQUBE_POSTGRES_SUPERUSER_PASSWORD="CHANGEME"
export SONARQUBE_POSTGRES_USER_PASSWORD="CHANGEME"
```
Create Kubernetes Secret for 🛡️ TLS Certificate for SonarQube in Namespace devsecops-system.

Kubernetes Ingress for SonarQube will associate TLS Certificate with Kubernetes Secret named $K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME.

Create one using from .crt and .key file.
Terminal window
```
kubectl create secret tls $K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME \
  --cert=/path/to/cert/file --key=/path/to/key/file \
  --namespace devsecops-system
```
💡 Should return secret/... created message.

Application Dependencies

PostgreSQL SQL Database

Set PostgreSQL Information
- Database Name: sonarqube (Defined in manifest)
- Database User: sonarqube (Defined in manifest)
- Database Password: ${SONARQUBE_POSTGRES_USER_PASSWORD} (Previously exported)
- Postgres Superuser Password: ${SONARQUBE_POSTGRES_SUPERUSER_PASSWORD} (Previously exported)

Provision PostgreSQL for SonarQube

The following manifest defines the entire PostgreSQL system, including credentials and the CNPG cluster.

kubectl apply --namespace devsecops-system -f - <<EOF
---
# SonarQube Postgres Superuser Credentials
apiVersion: v1
kind: Secret
type: kubernetes.io/basic-auth
metadata:
  name: sonarqube-postgres-superuser
  namespace: devsecops-system
stringData:
  username: postgres
  password: "${SONARQUBE_POSTGRES_SUPERUSER_PASSWORD}"
---
# SonarQube Application User Credentials
apiVersion: v1
kind: Secret
type: kubernetes.io/basic-auth
metadata:
  name: sonarqube-postgres-user
  namespace: devsecops-system
stringData:
  username: sonarqube
  password: "${SONARQUBE_POSTGRES_USER_PASSWORD}"
---
# S3 Credentials for Postgres Backups (to SeaweedFS HA)
apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: sonarqube-postgres-s3-secret
  namespace: devsecops-system
stringData:
  S3_ACCESS_KEY: "postgres-backup"
  S3_SECRET_KEY: "${SEAWEEDFS_HA_S3_POSTGRES_BACKUP_PASSWORD}"
---
apiVersion: barmancloud.cnpg.io/v1
kind: ObjectStore
metadata:
  name: sonarqube-postgres-backup
  namespace: devsecops-system
spec:
  # This resource defines the backup destination for the Barman Cloud Plugin
  configuration:
    destinationPath: s3://postgres-backups/
    endpointURL: http://seaweedfs-s3.apps-supporting-services.svc:9000
    s3Credentials:
      accessKeyId:
        name: sonarqube-postgres-s3-secret
        key: S3_ACCESS_KEY
      secretAccessKey:
        name: sonarqube-postgres-s3-secret
        key: S3_SECRET_KEY
    wal:
      compression: gzip
    data:
      compression: gzip

  # Retention policy for backups and WALs handled by the plugin
  retentionPolicy: "30d"

---
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: sonarqube-postgres
  namespace: devsecops-system
  labels:
    app.kubernetes.io/name: sonarqube-postgres
    app.kubernetes.io/part-of: sonarqube
spec:
  instances: 1

  # Image configuration (Postgres 16)
  imageCatalogRef:
    apiGroup: postgresql.cnpg.io
    kind: ClusterImageCatalog
    name: postgresql-standard-trixie
    major: 16

  # Enable the Barman Cloud Plugin for backups
  plugins:
    - name: barman-cloud.cloudnative-pg.io
      isWALArchiver: true
      parameters:
        serverName: "sonarqube-postgres"
        barmanObjectName: "sonarqube-postgres-backup"

  # Storage Configuration
  storage:
    size: 5Gi
    storageClass: "${K8S_STORAGECLASS_NAME}"

  walStorage:
    size: 2Gi
    storageClass: "${K8S_STORAGECLASS_NAME}"

  # Bootstrap Configuration
  bootstrap:
    initdb:
      database: sonarqube
      owner: sonarqube
      secret:
        name: sonarqube-postgres-user

  # Superuser credentials (root/postgres)
  superuserSecret:
    name: sonarqube-postgres-superuser

  # Backup Configuration (Barman Cloud Plugin will automatically detect matching ObjectStore)
  backup:
    {}

  # Resources
  resources:
    requests:
      memory: "256Mi"
      cpu: "200m"
    limits:
      memory: "1Gi"
      cpu: "1000m"

EOF

💡 Should return secret/sonarqube-postgres-superuser, secret/sonarqube-postgres-user, and cluster.postgresql.cnpg.io/sonarqube-postgres created messages.

Check for PostgreSQL for SonarQube Readiness - MUST be Ready and Running.

Get Pod Status - PostgreSQL for SonarQube

kubectl get pods -n devsecops-system

💡 PostgreSQL for SonarQube MUST be Running

NAME                   READY   STATUS    RESTARTS   AGE
... (deducted)
sonarqube-postgres-1    2/2     Running   0          XdXh
sonarqube-postgres-2    2/2     Running   0          XdXh
sonarqube-postgres-3    2/2     Running   0          XdXh

Pre-Installation

Prepare SonarQube Resources

Install Opstella Logo for Single Sign-On Button

You will be creating Kubernetes ConfigMap named sonarqube-opstella-logo
Terminal window
```
# Create Kubernetes ConfigMap
kubectl create configmap sonarqube-opstella-logo \
  -n devsecops-system \
  --from-file=$HOME/opstella-installation/assets/files/opstella-logo.svg
```
💡 Should return configmap/sonarqube-opstella-logo created message.

Prepare SonarQube Configurations

SonarQube Entrypoint Domain
- Domain: ${SONARQUBE_DOMAIN} (Previously exported)
Set SonarQube Credentials for Initial Admin Account
- Admin Username: admin (Cannot be changed)
- Admin Password: ${SONARQUBE_ADMIN_PASSWORD} (Previously exported)
- PostgreSQL Connection and Credentials
  - Use previously mentioned in Application Dependencies/PostgreSQL for SonarQube
```
export SONARQUBE_DB_HOST="jdbc:postgresql://sonarqube-postgres-rw.devsecops-system.svc.${K8S_INTERNAL_DOMAIN}/sonarqube?socketTimeout=1500"
```

Create Kubernetes Secret named sonarqube-credentials

kubectl apply --namespace devsecops-system -f - <<EOF
apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: sonarqube-credentials
stringData:
  password: ${SONARQUBE_ADMIN_PASSWORD}
  currentPassword: admin
EOF

Create Helm Values Configurations

cat <<EOF > $HOME/opstella-installation/helm-values/sonarqube-full-values.yaml
# OPSTELLA_CUSTOMIZE/Helm: Deploy Name Overriding; defaults will deploy sonarqube pods with 'sonarqube-sonarqube-0' name, saddd.
nameOverride: sonarqube
fullnameOverride: sonarqube

# Kubernetes: Fundamental Configurations
clusterDomain: ${K8S_INTERNAL_DOMAIN}

# OPSTELLA_CUSTOMIZE: Disable built-in NGINX Ingress from Helm Chart
nginx:
  enabled: false

# Kubernetes: Expose through Ingress
ingress:
  enabled: true
  hosts:
    - name: ${SONARQUBE_DOMAIN}
      path: "/"
  ingressClassName: ${K8S_INGRESSCLASS_NAME}
  annotations:
    nginx.ingress.kubernetes.io/proxy-body-size: 100m
    ingress.kubernetes.io/proxy-body-size: 100m
  tls:
    - secretName: ${K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME}
      hosts:
      - ${SONARQUBE_DOMAIN}

# TODO: Application: Monitoring - Move to Existing Secret
monitoringPasscode: "P@ssw0rd"

# OPSTELLA_CUSTOMIZE/Application: SonarQube Edition
community:
  enabled: true

# Application: Database Configuration
postgresql:
  enabled: false
jdbcOverwrite:
  enable: true
  # The JDBC url of the external DB
  jdbcUrl: ${SONARQUBE_DB_HOST}
  # The DB user that should be used for the JDBC connection
  jdbcUsername: sonarqube
  ## Alternatively, use a pre-existing k8s secret containing the DB password
  jdbcSecretName: sonarqube-postgres-user
  ## and the secretValueKey of the password found within that secret
  jdbcSecretPasswordKey: password

# Application: SonarQube Plugins Configurations
# - OIDC Plugin
plugins:
  install:
    - https://github.com/vaulttec/sonar-auth-oidc/releases/download/v2.1.1/sonar-auth-oidc-plugin-2.1.1.jar

## Kubernetes/Application: Authentication
# The above values can be also provided by a secret that contains "password" and "currentPassword" as keys. You can generate such a secret in your cluster
# using "kubectl create secret generic admin-password-secret-name --from-literal=password=admin --from-literal=currentPassword=admin"
setAdminPassword:
  passwordSecretName: sonarqube-credentials

# OPSTELLA_CUSTOMIZE/Application: Add Opstella Platform Logo for OIDC Login
persistence:
  volumes:
    - name: opstella-logo
      configMap:
        name: sonarqube-opstella-logo
        items:
          - key: opstella-logo.svg
            path: opstella-logo.svg
  mounts:
    - name: opstella-logo
      mountPath: /opt/sonarqube/web/images/opstella-logo.svg
      subPath: opstella-logo.svg
      readOnly: true

# Kubernetes: Security Context
containerSecurityContext:
  allowPrivilegeEscalation: false
  privileged: false
  runAsNonRoot: true
  runAsUser: 1000
  runAsGroup: 0
  seccompProfile:
    type: RuntimeDefault
  capabilities:
    drop: ["ALL"]

## OPSTELLA_CUSTOMIZE: Disable By Default to encourage configurations on Host OS instead.
initSysctl:
  enabled: false

## OPSTELLA_CUSTOMIZE: Disable By Default to encourage configurations on CSI driver instead.
initFs:
  enabled: false
EOF

Installation

Check for PostgreSQL for SonarQube Readiness - MUST be Running and Ready.

Get Pod Status - PostgreSQL for SonarQube

kubectl get pods -n devsecops-system

💡 PostgreSQL for SonarQube MUST be Running

NAME                   READY   STATUS    RESTARTS   AGE
... (deducted)
sonarqube-postgres-1    2/2     Running   0          XdXh
sonarqube-postgres-2    2/2     Running   0          XdXh
sonarqube-postgres-3    2/2     Running   0          XdXh

Add SonarQube Helm Repository

helm repo add sonarqube https://SonarSource.github.io/helm-chart-sonarqube
helm repo update

Install SonarQube

Install a Helm Release with specific Helm Chart Version --version 10.8.1 (App Version: 10.8.1)

helm install sonarqube sonarqube/sonarqube --version 10.8.1 \
  --namespace devsecops-system \
  -f $HOME/opstella-installation/helm-values/sonarqube-full-values.yaml

Post-Installation

SonarQube Testing

Get Pod Status - SonarQube

kubectl get pods -n devsecops-system

💡 SonarQube should be Running

NAME             READY   STATUS    RESTARTS   AGE
... (deducted)
sonarqube-0      1/1     Running   0          XdXh

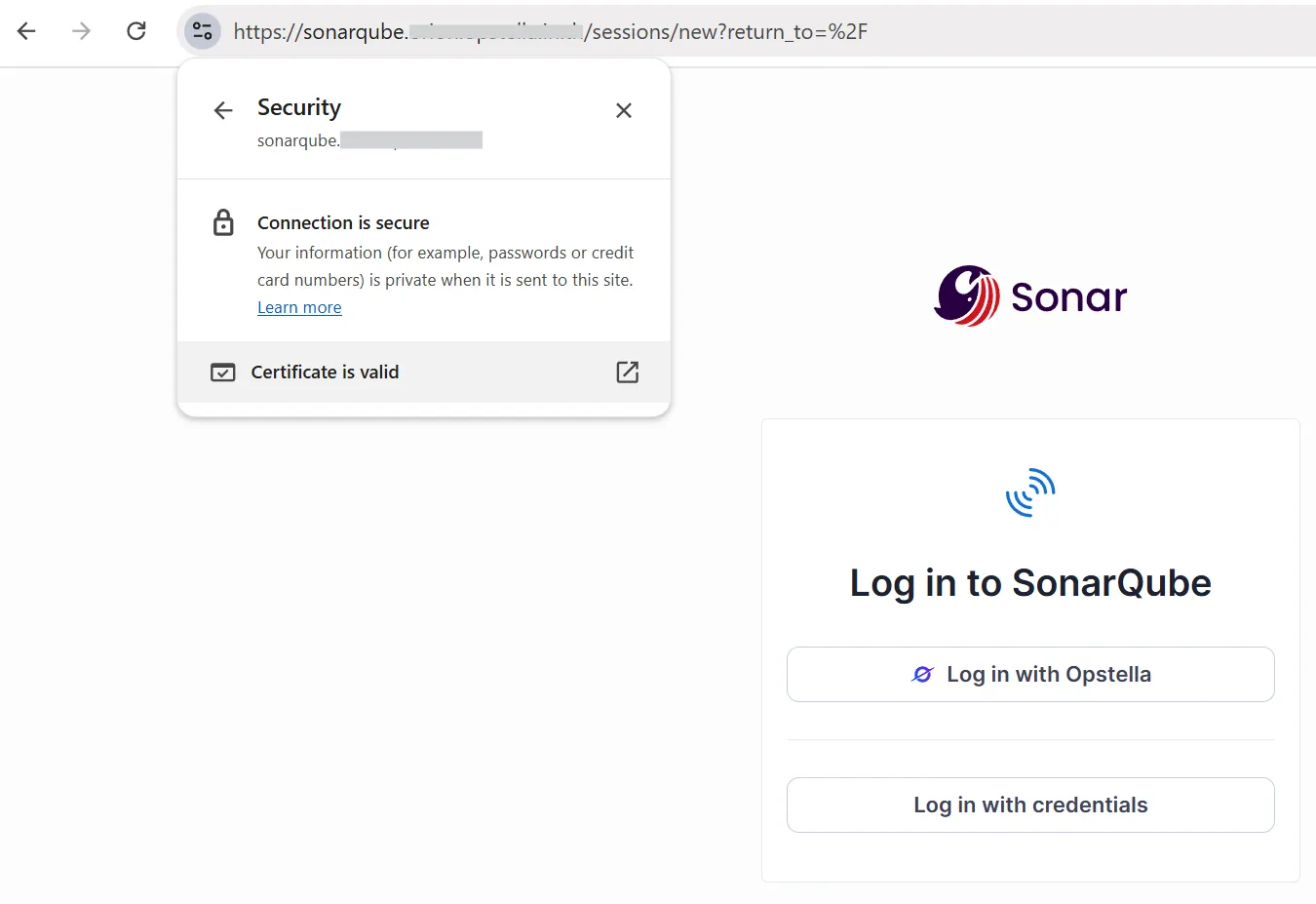

Visit https://${SONARQUBE_DOMAIN}
- It should be accessible.
- TLS Certificate should be valid and coresponding to your TLS Certificate Installed
Login with Users
- Try to login with Initial Admin Account

  admin, $SONARQUBE_ADMIN_PASSWORD (Log in with credentials), if success then it works.
