Vault Installation

Vault is a Centralised Secret Management

Prerequisites

Kubernetes Cluster

Vault will be installed on 🟢 Management Kubernetes Cluster

📥Ingress Service provided as Kubernetes Ingress Class (IngressClass)
🛡️TLS Certificate for Vault provided as Kubernetes Secret
- Vault will be exposed as HTTPS with Kubernetes Ingress.
💿Persistence Storage as Kubernetes Storage Class (StorageClass)

Application Dependencies

Vault depends on multiple dependencies to be up and running but only the following will be provisioned and/or managed by you.

📦S3 API-compatible Object Storage ;i.e SeaweedFS
- 🪣S3 Bucket: A Unit of Logical Storage with 🌏Region specified.
  - Vault uses 1 bucket.
    - For Unseal Key and Root Token Storage after initialised, Auto-Unseal Process.
- 🔑Credentials to Access S3 Bucket: Access Key, Secret Key.
  - Create/Gather a Dedicated Access Key/Secret Key for Vault to access to its buckets.

Complete Prerequisites

Kubernetes Cluster

Prepare Shell Variables

Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

Connect to 🟢 Management Kubernetes Cluster ; i.e w/ Kubeconfig File

Ensure you have defined and loaded your Global Shell Variables as described in Shell Variables.

source $HOME/opstella-installation/shell-values/kubernetes/management_cluster.vars.sh
source $HOME/opstella-installation/shell-values/tools/vault.vars.sh

export KUBECONFIG="$HOME/opstella-installation/kubeconfigs/management_cluster.yaml"

Export Required Shell Variables

Ensure VAULT_DOMAIN is defined as per the Shell Variables guide.

Ensure K8S_INTERNAL_DOMAIN, K8S_INGRESSCLASS_NAME, K8S_STORAGECLASS_NAME, K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME are defined as per the Shell Variables guide. Additionally, export the following variables:
Terminal window
```
# Infrastructure Configuration
export VAULT_S3_DOMAIN="seaweedfs-api.${BASE_DOMAIN}"
export VAULT_S3_BUCKET_NAME="vault"
export VAULT_S3_BUCKET_REGION="us-east-1"
export VAULT_S3_ACCESS_KEY="vault"
export VAULT_S3_ACCESS_SECRET="${SEAWEEDFS_HA_S3_VAULT_PASSWORD}"
```
SEAWEEDFS_HA_S3_VAULT_PASSWORD is assumed to be exported as defined in the SeaweedFS (HA) Installation guide.
Create Kubernetes Secret for 🛡️ TLS Certificate for Vault in Namespace devsecops-system.

Create one using from .crt and .key file.
Terminal window
```
kubectl create secret tls $K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME \
  --cert=/path/to/cert/file --key=/path/to/key/file \
  --namespace devsecops-system
```
💡 Should return secret/wildcard-...-tls created message.

Application Dependencies

S3 API-compatible Object Storage

Set S3 API-compatible Object Storage Information for Vault.

Pre-Installation

Prepare Vault Auto-Unsealing Configurations

Install Script Artifact as Kubernetes ConfigMap

You will be creating Kubernetes ConfigMap named vault-init-script from Provision Assets
Terminal window
```
# Create Kubernetes ConfigMap
kubectl create configmap vault-init-script -n devsecops-system \
    --from-file=$HOME/opstella-installation/assets/scripts/vault-init.sh
```
💡 Should return configmap/vault-init-script created message.

Create S3 Endpoint and Credentials as Kubernetes Secret

S3 Endpoint here will need to specify protocol, will use HTTPS by default.

kubectl apply --namespace devsecops-system -f - <<EOF
apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: vault-s3-credentials
stringData:
  VAULT_AUTO_UNSEAL_METHOD: MINIO
  VAULT_S3_URL: https://${VAULT_S3_DOMAIN}
  VAULT_S3_ACCESS_KEY: ${VAULT_S3_ACCESS_KEY}
  VAULT_S3_ACCESS_SECRET: ${VAULT_S3_ACCESS_SECRET}
  VAULT_S3_BUCKET_NAME: ${VAULT_S3_BUCKET_NAME}
EOF

Create Kubernetes Service to Point to the First Vault Pod

By create Kubernetes Service with label/selector to pod name.

kubectl apply --namespace devsecops-system -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: vault-main-headless
spec:
  clusterIP: None
  selector:
    statefulset.kubernetes.io/pod-name: vault-0
  ports:
    - name: http
      protocol: TCP
      port: 8200
      targetPort: 8200
    - name: https-internal
      protocol: TCP
      port: 8201
      targetPort: 8201
EOF

Prepare Vault Configurations

Create Helm Values Configurations

cat <<EOF > $HOME/opstella-installation/helm-values/vault-full-values.yaml
# Application: Enabled Web Interface
ui:
  enabled: true

# Application: Disable Built-in Injector (use ESO+Reloader instead)
injector:
  enabled: false

server:
  # Kubernetes/Application: Enabled Persistence
  dataStorage:
    enabled: true
    storageClass: ${K8S_STORAGECLASS_NAME}

  # OPSTELLA_CUSTOMIZE/Kubernetes/Application: Auto Unsealing Script, Run after server started
  extraArgs: '| /vault/userconfig/scripts/vault-init.sh'

  # Application: Enabled High Availability (Odd Number of Pods)
  ha:
    enabled: true
    replicas: 3
    raft:
      enabled: true
      setNodeId: true
      config: |
        ui = true
        listener "tcp" {
          tls_disable = 1
          address = "[::]:8200"
          cluster_address = "[::]:8201"
          # Enable unauthenticated metrics access (necessary for Prometheus Operator)
          telemetry {
            unauthenticated_metrics_access = "true"
          }
        }
        storage "raft" {
          path = "/vault/data"
        }
        service_registration "kubernetes" {}

  # Kubernetes: Config Kubernetes Security Context
  statefulSet:
    securityContext:
      pod:
        fsGroup: 10000
        runAsGroup: 10000
        runAsUser: 10000
        runAsNonRoot: true
        seccompProfile:
          type: RuntimeDefault
      container:
        runAsGroup: 10000
        runAsUser: 10000
        runAsNonRoot: true
        seccompProfile:
          type: RuntimeDefault
        ### CONTAINER ONLY KEYS ###
        privileged: false
        allowPrivilegeEscalation: false
        capabilities:
          drop: ["ALL"]
        ### CONTAINER ONLY KEYS ###

  # Kubernetes: Expose through Ingress
  ingress:
    enabled: true
    ingressClassName: ${K8S_INGRESSCLASS_NAME}
    hosts:
      - host: ${VAULT_DOMAIN}
        paths: ["/"]
    tls:
      - secretName: ${K8S_INGRESS_TLS_CERTIFICATE_SECRET_NAME}
        hosts:
          - ${VAULT_DOMAIN}

  # Kubernetes: Velero VPC Backup Annotation
  configAnnotation: true
  annotations:
    backup.velero.io/backup-volumes: data

  # OPSTELLA_CUSTOMIZE/Kubernetes/Application: Auto Unsealing Script
  # Provide a S3(-compatible) Connection with Credentials
  extraSecretEnvironmentVars:
    - envName: VAULT_AUTO_UNSEAL_METHOD
      secretName: vault-s3-credentials
      secretKey: VAULT_AUTO_UNSEAL_METHOD
    - envName: VAULT_S3_URL
      secretName: vault-s3-credentials
      secretKey: VAULT_S3_URL
    - envName: VAULT_S3_ACCESS_KEY
      secretName: vault-s3-credentials
      secretKey: VAULT_S3_ACCESS_KEY
    - envName: VAULT_S3_ACCESS_SECRET
      secretName: vault-s3-credentials
      secretKey: VAULT_S3_ACCESS_SECRET
    - envName: VAULT_S3_BUCKET_NAME
      secretName: vault-s3-credentials
      secretKey: VAULT_S3_BUCKET_NAME

  # OPSTELLA_CUSTOMIZE/Kubernetes/Application: Auto Unsealing Script
  # Mount the script from Kubernetes ConfigMap
  volumes:
    - name: vault-scripts
      configMap:
        name: vault-init-script
        defaultMode: 0770
  volumeMounts:
    - mountPath: /vault/userconfig/scripts
      name: vault-scripts

EOF

Installation

Add Vault Helm Repository

helm repo add hashicorp https://helm.releases.hashicorp.com
helm repo update

Install Vault

Install a Helm Release with specific Helm Chart Version --version 0.30.1 (App Version: 1.20.0)

helm install vault hashicorp/vault --version 0.30.1 \
  --namespace devsecops-system \
  -f $HOME/opstella-installation/helm-values/vault-full-values.yaml

Post-Installation

Gather Credentials from Auto-Unsealing Process

Credentials of Hashicorp Vault will be store on the provided S3-API Compatible Object Storage.

🗝️ Vault Unseal Key
🗝️ Vault Root Token
- Initial Credentials for Access to Vault.
- Also required for integrating with Opstella.

You can gather it by visiting the Console or Admin Panal of your provided S3-API Compatible Object Storage or Using mc CLI to get the file.

In case using SeaweedFS Admin Panal

Go to https://seaweedfs-admin.${BASE_DOMAIN} and login with credentials
Go to Bucket Name vault.
You should see files.
- rootToken.txt
- unsealKey.txt
Download all of the files.
Copy the token from rootToken.txt to replace CHANGEME and run the command to set the variable.
```
export VAULT_TOKEN="CHANGEME"
```

Next Steps: Setup Single Sign-On with Opstella

Vault Testing

Get Pod Status - Vault

kubectl get pods -n devsecops-system

Vault should be Running

NAME                 READY   STATUS    RESTARTS   AGE
... (deducted)
vault-0              1/1     Running   0          XdXh
vault-1              1/1     Running   0          XdXh
vault-2              1/1     Running   0          XdXh

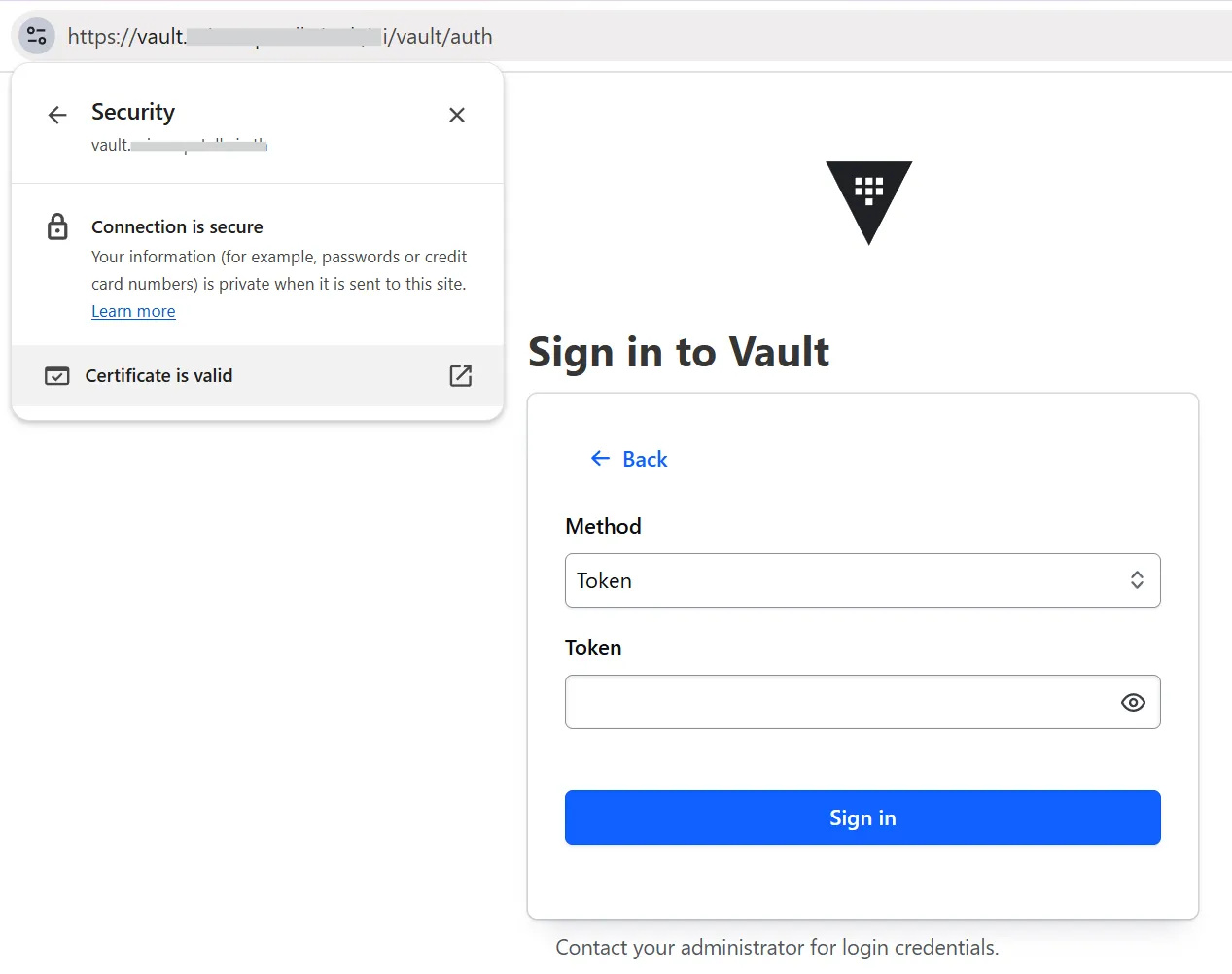

Visit https://${VAULT_DOMAIN}
- It should be accessible.
- TLS Certificate should be valid and coresponding to your TLS Certificate Installed
Login with Root Token
- Try to login with Root Token, if success then it works.
